EIS offers a complete line of enclosures for the data center. They are designed for the servers, network racks for IT equipment. Currently, our racks and related cable, cooling and power management accessories populate some of the largest data centers in the world. The cabinet lines consist of multiple rack heights, widths and depths. The cabinet's features are; expanded rack heights, depths and capabilities that address today's demanding requirements for power, cable and cooling management. All with a full line of accessories that are available in 12 durable powder coat finishes and are made in the USA.

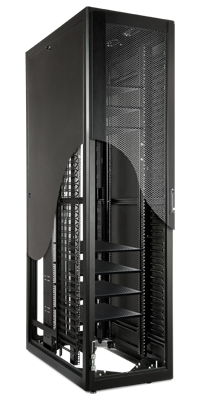

The cabinet frames provide exceptional support for your IT infrastructure. All are fully welded frames and have been engineered from the ground up. Multi-formed main channels in each of the four corners providing unmatched weight support. Formed gussets and side uni-struts for exceptional load limits. Available in 24U, 42U, 44U, 47U and 51U, panel widths of 19”, 24” and 32” and depths of 36”, 42”, 45” and 48”. Mounting channels are not included with frame. A 10 year warranty.

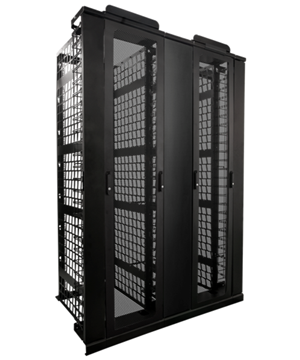

The Cable Management rack (TCM) is a high density, open architecture cable management system that establishes pathways for large volume network cabling. It provides complete accessibility for cabling swaps and add-ons, while providing optimal heat dissipation. This allows you network hardware to run cooler and perform as intended.
Certified Load Rating - 2,100 lbs
Rack Heights - 45RU and 51RU
Rack Width - 23”
Rack Depths - 6”, 10”, 16”, and 30”
Features:
Open architect design promotes optimal airflow
TCM racks support large cable bundles with dedicated raceways
Large vent pattern in rack sides help heat dissipation
Racks and doors are constructed of heavy duty aluminum-creating a light weight rack with a high load rating
Bottom flange at base of rack can be turned inward for typical 2’x2’ computer floor tile mount
Assembles quickly for faster installation set-up
Bases have a cover plate that conceals assembly hardware and the bolt down base
Vented doors with dual handles for LH/RH access to equipment
Cable manager with door is available in four rack widths for large vertical cable bundles
Third rail option available for shallower equipment mounting into deeper racks
#12-24 spare hardware for 6’,10’ and 16” depth racks, M6 spare hardware for the 30” depth
Baffle kit option for directing cold intake air to side of switches where it is exhausted out into the hot aisle
Available in twelve standard colors
Available Options
Doors - dual handle design with RH/LH access and keyed locks – concealed hinges
Cable manager w/door
End cap bolt on design
Baffle kit for cold air/hot air optimization
Third rail available in 51U and 45U
Ladder bracket mount for overhead raceway either 6-12” or 12-24”
